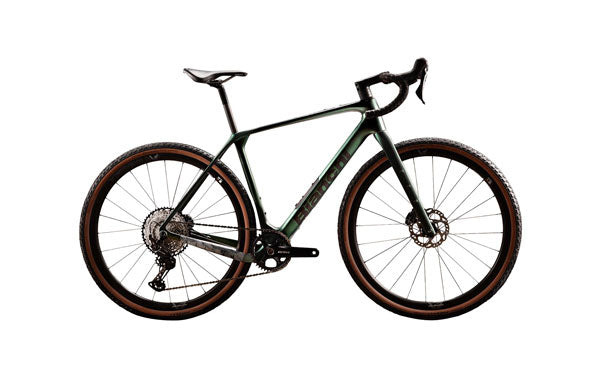

Bike Bianchi Arcadex Pro GRX820/822 – Disc 1x12sp

The carbon fiber frame of the Arcadex benefit it’s from a dedicated endurance geometry,
specifically suited to long-distance r ides and expeditions that see you in the saddle
on back-to-back days. It is offered in Pro and Comp versions.

Arcadex PRO Disc Brake Specification: Flat Mount 140/160

Bottom Bracket Standard: PressFit 86.5 X Ø41

Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm

Front Derailleur: Non-Compatible

Rear Derailleur: SRAM UDH

Fork: Bianchi Arcadex Fork

Disc Brake Specification: Flat Mount 140/160

Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm

Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber Composite

Headset: Bianchi Custom Acros ICR (Internal Cable Routing)

Spacers: 5 mm x1, 10mm x3

Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch

Top Bearing: Angular contact Bearing 42x52x7 + seal

Bottom Bearing: Angular contact Bearing 40x52x7 + seal

Shifters: Shimano GRX 820 ST/BL-RX820
Rear Derailleur: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
Crankset: Shimano GRX 820 FC-RX820-1, 40T

Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Bottom Bracket: Shimano SM-BB72-41B, press fit
Chain: Shimano CN-M7100
Cassette: Shimano CS-M7100-12 speed, 11-51T

Driver body Interface: MicroSpline
Brakes: Shimano Hydraulic Brake, BR-RX820
Rotor: Shimano SM-RT70 IceTech

Hub Interface: Centerlock Rotor Diameter: 160 mm (front & rear)
Wheels: Shimano SM-RT70 IceTech

Hub Interface: Centerlock

Rotor Diameter: 160 mm (front & rear)
Tire: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
Stem: Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8″” (28.6mm) HB interface Diameter: 1-1/4″” (31.8mm) Stem Lengths: 80mm – XS(47), 90mm – SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
Handlebar: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4″” (31.8mm) HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55) LG(58), 440 -XL(61)
Grips: Bianchi Hexagon tape 2.5mm thickness, Full black
Seatpost: Velomann Carbon UD SeatPost O.D: Ø27.2 mm

Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
Saddle: Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel length: 250mm width: 149mm weight: 230g ± 2
Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
